Input Voltage Range: 100--240V/AC (96~264V/ac)
Output: 3V~48V DC, 0.3A~100A (Customized spec available)
Output Ripple: 100-150mV-P
Over Voltage Protection: 130%min
Over Current Protection: 150%min

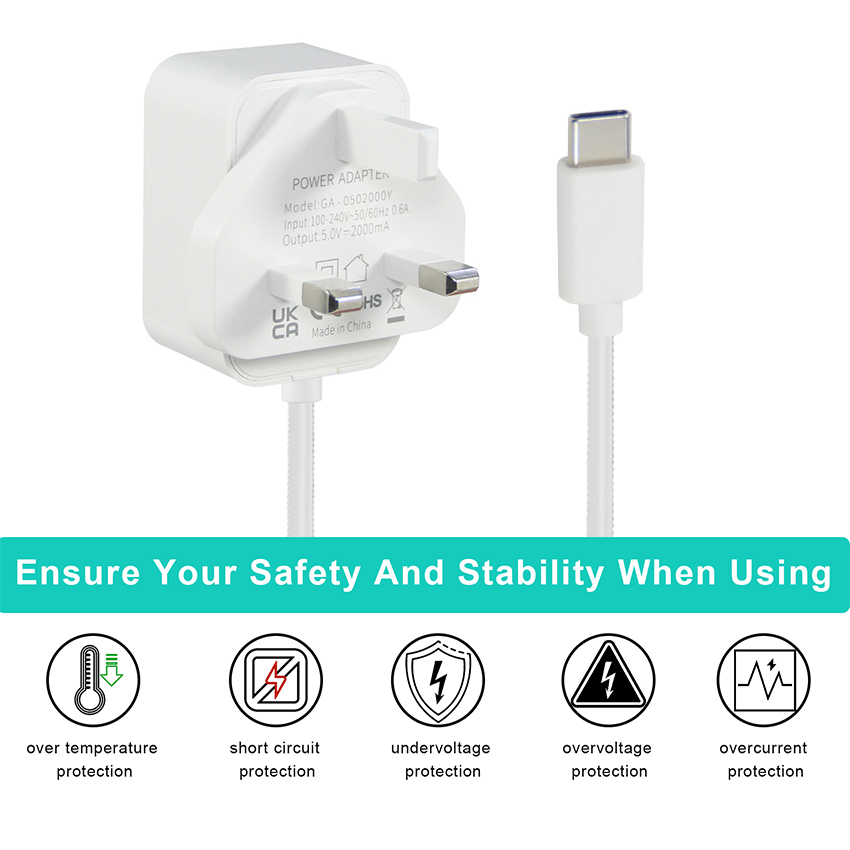

Protection Function: Short circuit, overload, overvoltage protection
Output Voltage Accuracy: + 5%
Working Environment Temperature: 0-40 °C
Storage Temperature: -20-85 °C
Working Humidity: 5-95%RH
Insulation: AC3000V(MIN), 5mA(Max)
Insulation Resistance: DC 500V 100M (Min)
Aging Test: Full load aging of 4 hours or more (can imitate actual bad environmental aging)
Pull Test: Fixed at one end, and at the other end with 20 NM. Five seconds later, connections and lines are not damaged.
Safety Certificate: CE/FCC/UL/SAA/GS/UKCA (can support safety standards of other countries per customer requirements)
Application: Security systems, instrumentation, medical equipment, audio-visual products, digital products, LED lighting, electric cars and other products.
Fluent shape, design of security, improve the allocation, cost advantage is obvious, accord with safety standards.
After Sale Service: 24 months warranty.
Veltok Power
