Veltok Power
1 / 5
| input voltage range: 100--240V/AC (96~264V/ac) |
| input frequency: 50-60Hz |
| output : 3V~48V DC, 0.3A~100A (Customized spec available) |
| output power: 3W~2000W |
| output ripple: 100-150mV-P |
| over voltage protection: 130%min |
| over current protection: 150%min |

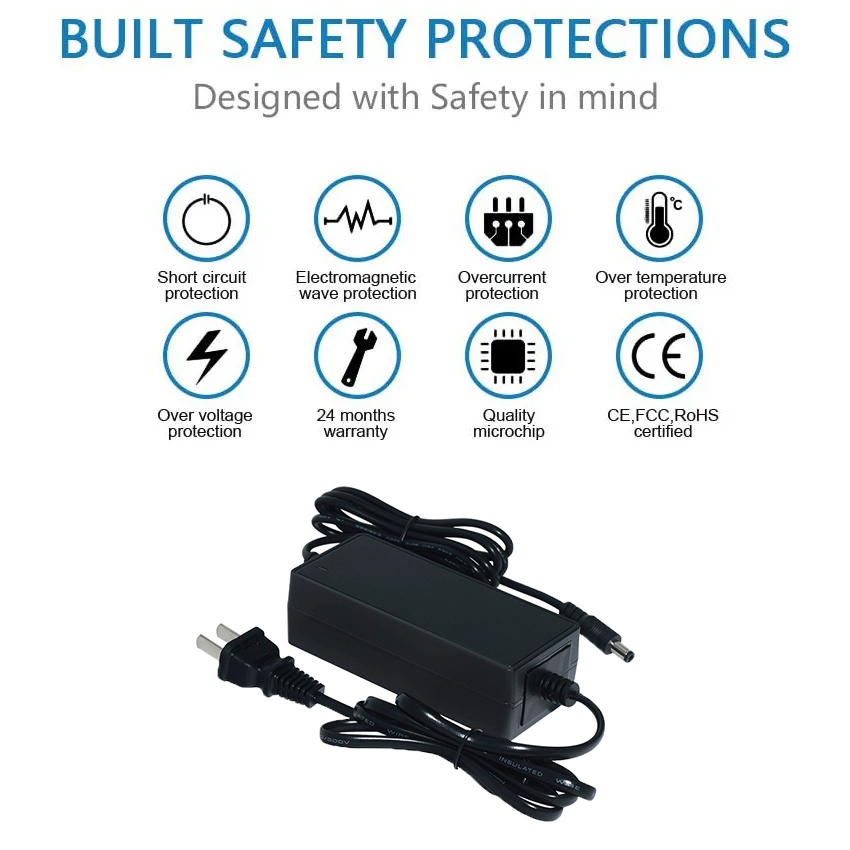

| protection function: short circuit, overload, overvoltage protection |
| output voltage accuracy: + 5% |
| working environment temperature: 0-40 °C |
| storage temperature: -20-85 °C |
| working humidity :5-95%RH |
| insulation:AC3000V(MIN),5mA(Max) |
| insulation resistance: DC 500V 100M (Min) |
| aging test: full load aging of 4 hours or more. (it can imitate the actual bad environmental aging) |
| pull test: fixed at one end and, at the other end with 20 nm, five seconds later, connections and lines are not damaged. |
| safety certificate: CE/FCC/UL/SAA/GS/UKCA, also can according to requirements for the safety of other countries. |
| application: security systems, instrumentation, medical equipment, audio-visual products, digital products, LED lighting, electric cars and other products. |
| fluent shape, design of security, improve the allocation, the cost advantage is obvious, accord with safety standards. |
| after sale service: 24 months warranty. |
